10公斤焊接变位机

BWJ-10 positioner

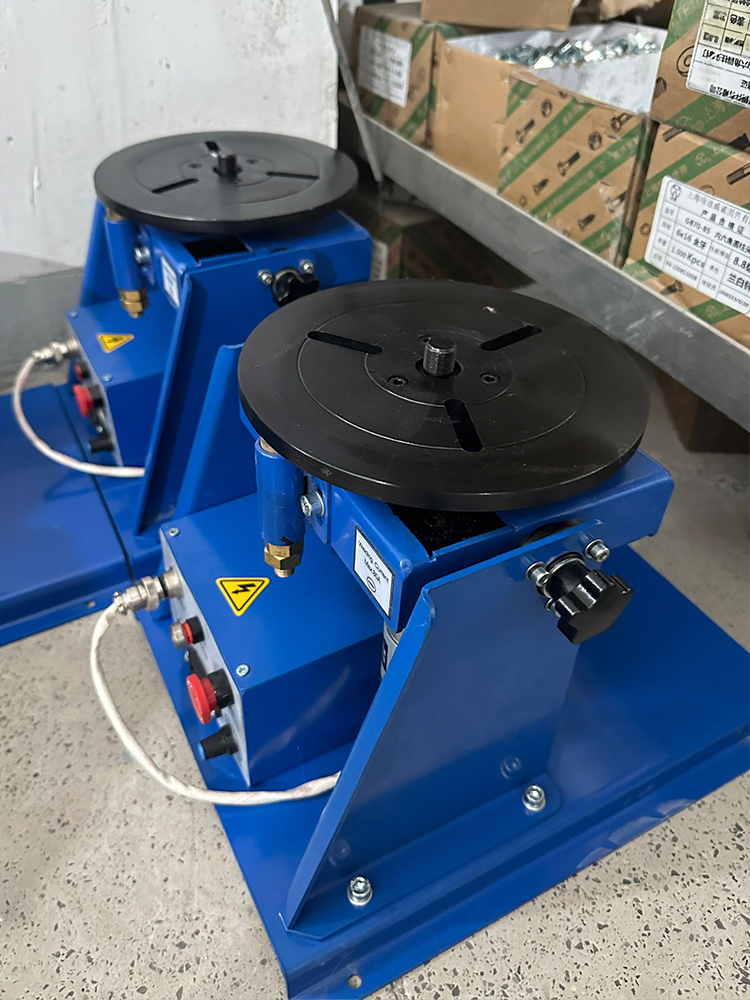

The 10 – kg Welding Positioner is an essential tool for small – part welding. It has a load – bearing capacity of 10 kg in the vertical direction and 5 kg in the horizontal direction2. The 180 – mm – diameter worktable is driven by a permanent – magnet DC stepless – speed – regulating motor, which ensures smooth rotation25. The worktable height is 215 mm, and it can be rotated at a speed of 2 – 10 rpm2. The positioner also features a self – locking flipping mechanism, allowing the worktable to be freely flipped within 0 – 90 degrees25. It comes with a control box, a foot pedal switch, and a carbon brush for good conductivity. This positioner is easy to use and can be widely used in the welding of small components such as flanges and steel pipes.

◆A 10kg welding positioner is a compact yet powerful rotary table designed to enhance welding precision and productivity. Ideal for MIG, TIG, and arc welding, reducing operator fatigue and improving weld quality.

◆ Plate thickness 9 mm, smooth rotation.

◆ Special welding machine ground wire conductive copper brush.

◆ Equipped with emergency stop switch, foot automatic dual-use.

◆ Famous brand DC speed regulating motor reducer.

◆ Optional pneumatic tail seat, welding gun support.

Key Features:

✔ 10kg Load Capacity – Perfect for small to medium workpieces
✔ Variable Speed Control – Adjustable rotation for different welding needs
✔ Robust Construction – Durable steel frame for long-lasting performance
✔ 360° Continuous Rotation – Ensures consistent weld seam access
✔ Compatible with Most Welders – Works with MIG, TIG, stick, and robotic welding setups

Why Choose Our 10kg Welding Positioner?

• Increased Efficiency – Reduces manual repositioning time
• Improved Weld Quality – Ensures even heat distribution and penetration
• Space-Saving Design – Compact footprint for small workshops
• Easy to Operate – User-friendly controls for beginners and professionals

10 kg positioner +65 chuck                                                                                                                       10 kg combination positioner

产品细节

Product details

Complete function

The side panel is fully functional

Lightweight welding experience

Dc motor

Brand DC motor

20W power provides plenty of power

Turn the plum knob

Rotary control table

Turnover Angle

Fast tightening without slippage

Reversible switch

Reversible free control

Easy and portable

产品解析

Product analysis

组合式产品解析

Combined product analysis

可搭配设备

Configurable equipment

XH-65 Chuck

XH-80 Chuck

Pneumatic tailstock

Welding torch holder
