600-kilogram positioner with through holes of 240/365mm

600公斤通孔变位机

BWJ-600 Through hole positioner

The 600 – kg Through – Hole Welding Positioner with 240 mm and 365 mm Holes is a high – performance welding auxiliary equipment designed for industrial applications. It has a rated load capacity of 600 kg, making it suitable for heavy – duty workpieces.

Put the workpiece on the chuck, the chuck quickly clamp, through the hand worm can make the workbench tilt an Angle so that the weld is in a flat welding position, to achieve good fusion of the weld pool, beautiful weld forming.

The welding gun holder can be selected to fix and flexibly adjust the relative position of the welding gun and weld.

Optional pneumatic thimble, play the role of positioning/jacking/follow-up rotation, to ensure that the workpiece makes the weld concentric rotation.

The control box can be freely switched through the knob stepless speed regulation, positive and negative rotation adjustable, foot control and automatic rotation.

Control box can be optional timing function, equipped with welding machine linkage signal line, set the time and speed can easily achieve automatic welding.

Optional PLC touch screen can set the rotation Angle and rotation speed, control the pneumatic gun frame, one-key control, with parameter storage function.

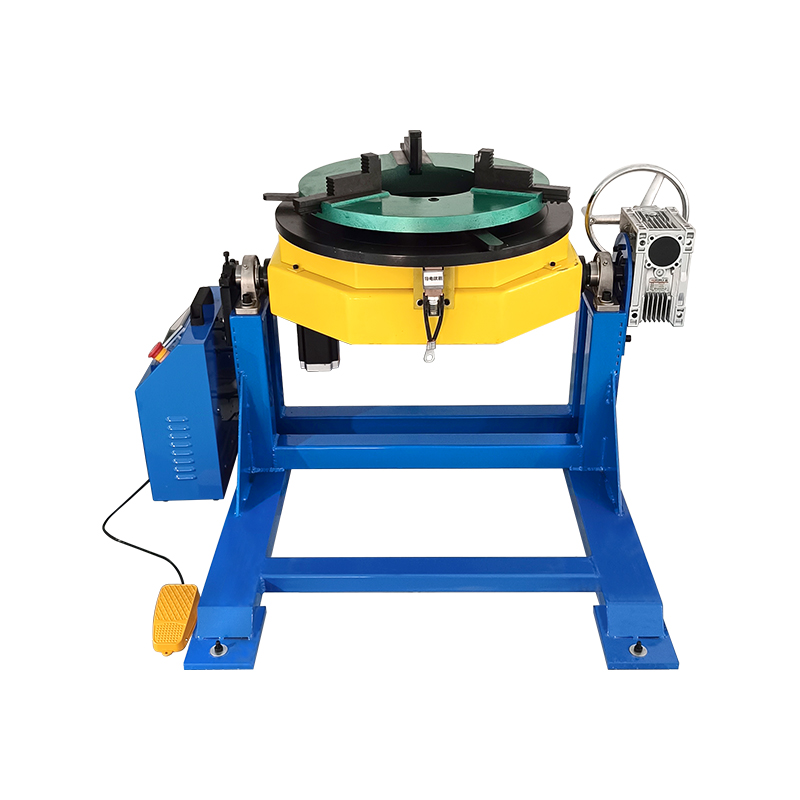

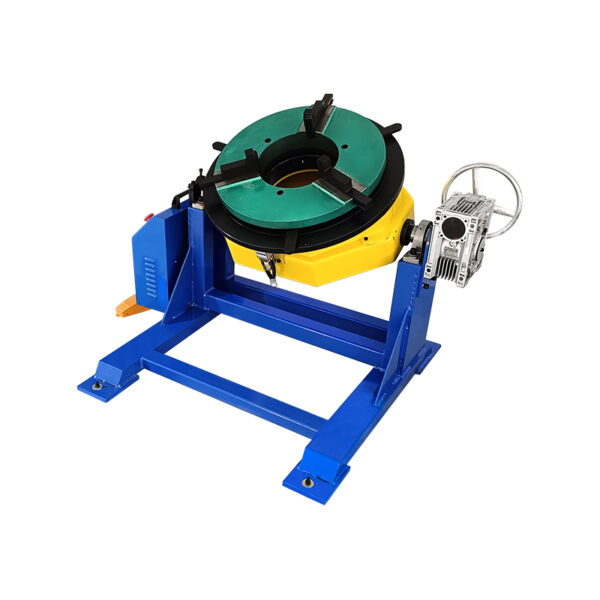

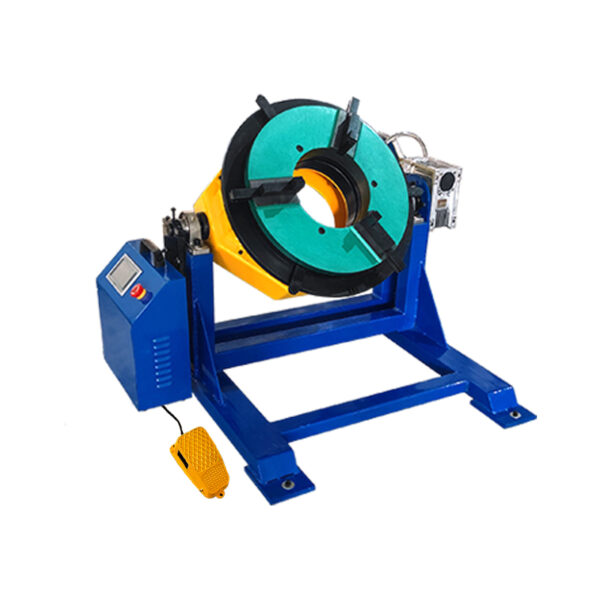

600kg positioner 240mm+500A chuck

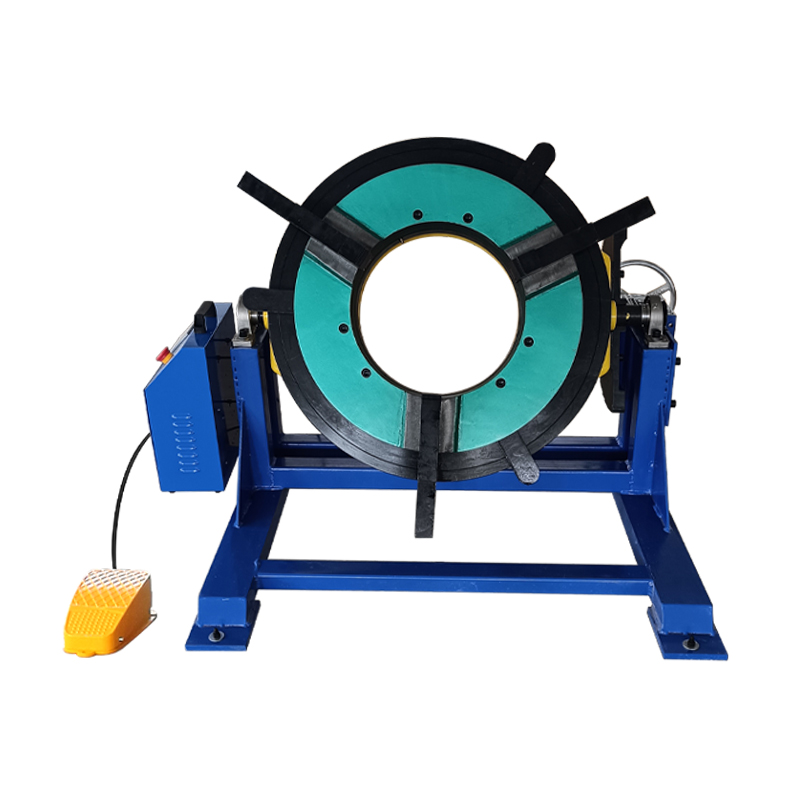

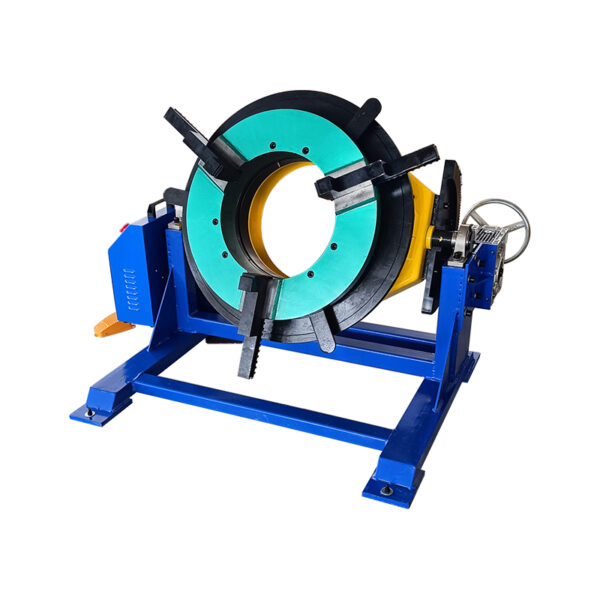

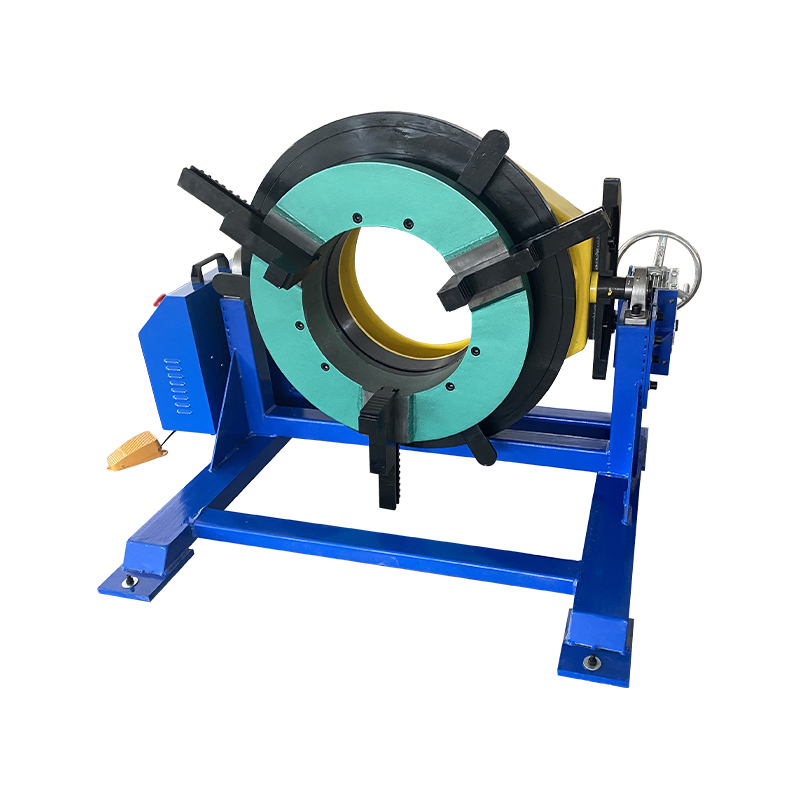

600kg positioner 365mm+600A chuck

产品细节

Product details

Conductive carbon brush

Welding ground wire

High copper four wire

300A current connection cable

Angle engraving

Clear and distinct Angle engraving

It can make customers more convenient to master

Turnover Angle

Wear turbine handle

Table can be freely turned 0-90 °

Easy to operate and adjust quickly

Foot switch

By pressing the foot switch

Control chuck rotation

产品解析/尺寸

Product analysis/dimensions

可搭配设备

Configurable equipment

XH-500A Chuck

XH-600A Chuck

TJ-500 roller bracket

现场实拍

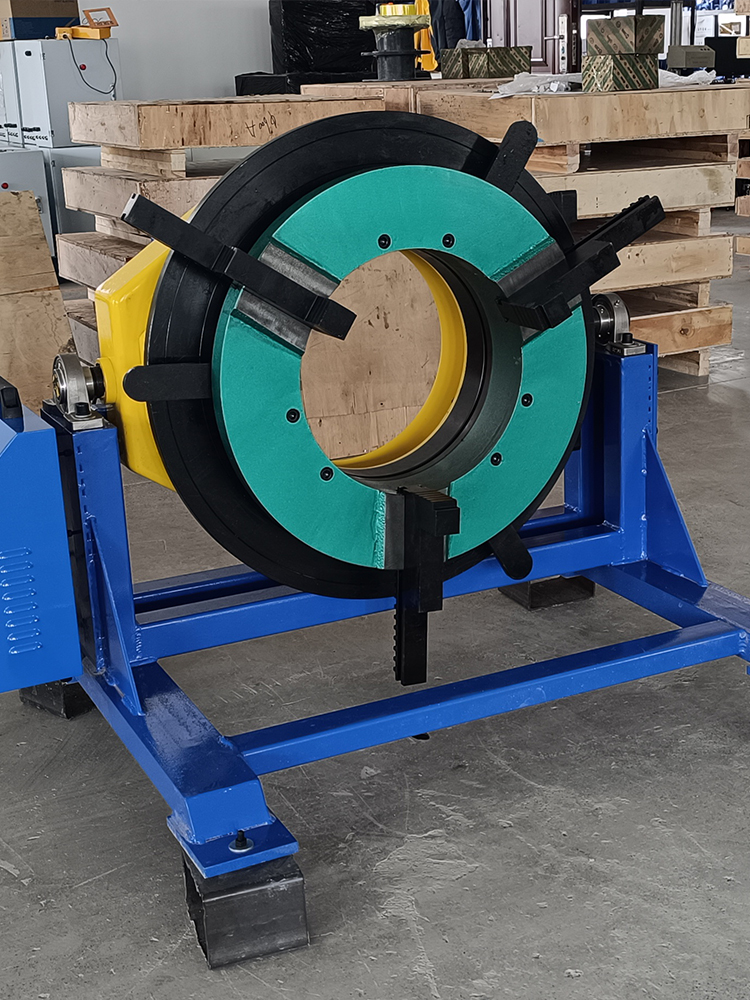

Live shooting
