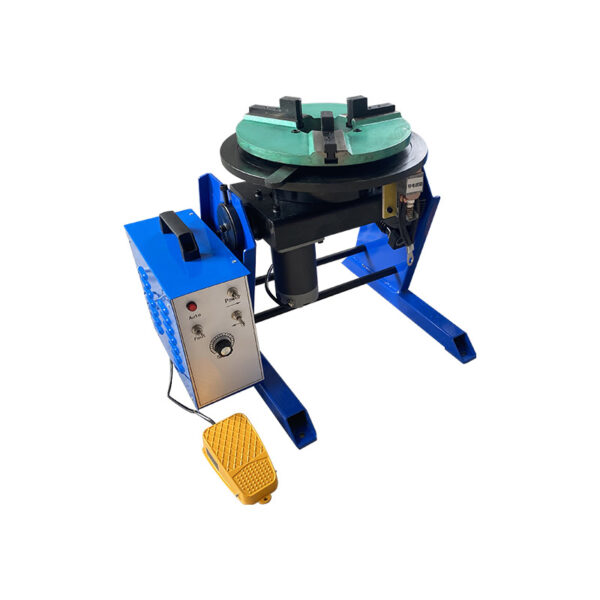

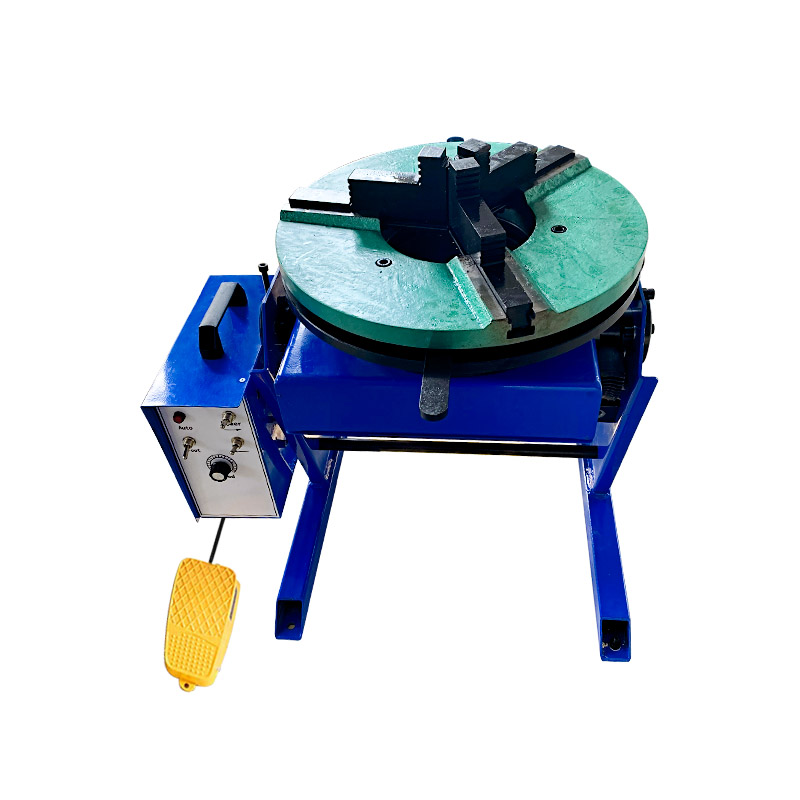

Multi-Size Welding Positioners | Custom Rotation Solutions
Multi-Spec Welding Positioners – Adjustable Rotation for Pipe/Plate Fabrication | 0.5-20T Capacity | Manual/Auto Models Available
多规格通孔变位机
Multi-gauge through hole positioner
◆Put the workpiece on the chuck, the chuck quickly clamp, through the hand worm can make the workbench tilt an Angle so that the weld is in a flat welding position, to achieve good fusion of the weld pool, beautiful weld forming.
◆The welding gun holder can be selected to fix and flexibly adjust the relative position of the welding gun and weld.
◆Optional pneumatic thimble, play the role of positioning/jacking/follow-up rotation, to ensure that the workpiece makes the weld concentric rotation.
◆The control box can be freely switched through the knob stepless speed regulation, positive and negative rotation adjustable, foot control and automatic rotation.
◆Control box can be optional timing function, equipped with welding machine linkage signal line, set the time and speed can easily achieve automatic welding.
◆Optional PLC touch screen can set the rotation Angle and rotation speed, control the pneumatic gun frame, one-key control, with parameter storage function.
| Model number | loadHorizontal/vertical | Through-hole diameter | Motor power | Disk diameter |
| BWJ-100-65 | 100/50KG | 65mm | 120W | 360mm |
| BWJ-200-100 | 200/100KG | 100mm | 120W | 400mm |
| BWJ-200-140 | 200/100KG | 140mm | 120W | 400mm |
| BWJ-200-170 | 200/100KG | 170mm | 120W | 400mm |
| BWJ-300-140 | 300/150KG | 140mm | 150W | 500mm |
| BWJ-300-170 | 300/150KG | 170mm | 150W | 500mm |
| BWJ-600-240 | 600/300KG | 240mm | 86 stepper motor | 600mm |
| BWJ-600-365 | 600/300KG | 365mm | 86 stepper motor | 750mm |
| Model number | Overall dimension | Rotational speed | Adaptive chuck |
| BWJ-100-65 | 500*415*450mm | 0.5-5r/M | 200/300mm |
| BWJ-200-100 | 530*490*500mm | 0.5-5r/M | 300mm |
| BWJ-200-140 | 530*490*500mm | 0.5-5r/M | 400Amm |
| BWJ-200-170 | 530*490*500mm | 0.5-5r/M | 400Amm |
| BWJ-300-140 | 650*560*600mm | 0.2-2.5r/M | 400Amm |
| BWJ-300-170 | 650*560*600mm | 0.2-2.5r/M | 400Amm |
| BWJ-600-240 | 860*850*702mm | 0.01-2r/M | 500A |
| BWJ-600-365 | 850*1050*730mm | 0.01-2r/M | 600A |
产品细节
Product details
Cast iron precision countertop
Made of fine iron, with a hole in the center
Strong bearing capacity, multi-specification selection
Can accommodate different types of workpiece welding
Foot switch
Mingde foot
International power cable
Safety guarantee
High copper conductive carbon brush
Use high quality materials
Electric rotary table
Saving time and labor welding stability
Wear turbine handle
Table can be freely turned 0-90 °
Easy to operate and adjust quickly
可搭配设备
Configurable equipment
Welding chuck
Welding torch holder
Pneumatic gun holder
Welding control box
Pneumatic tailstock
TJ-400 roller bracket
TJ-500 roller bracket
现场实拍
Live shooting
