TIG autoatic welding

Categories Argon arc automatic welding, Automatic welding equipment

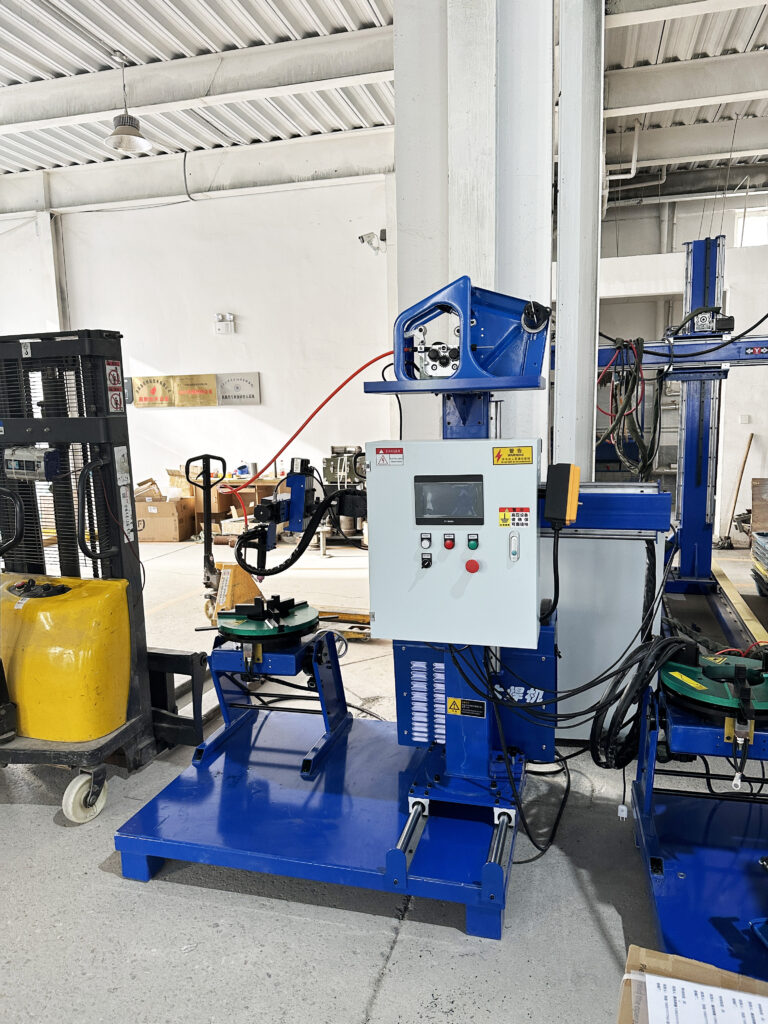

ZDH-1140 Flange pipe argon arc automatic welding high precision pipe elbow pipe tee with position-changing machine

+8618678896622

zhangrui018@gmail.com

氩弧自动焊1140

TIG autoatic welding

◆Suitable for pipe pipe, pipe bend, pipe high neck flange flat seam welding and pipe flange corner seam welding.

◆Suitable for welding of carbon steel and stainless steel.

◆Standard Autai WSM-400C argon arc welding machine, Panasonic YC-400TX4 argon arc welding machine can be selected.

◆Integrated design, compact structure, mature and reliable; Three-jaw self-centering chuck rotation positioning accurate.

◆3D manual welding cross + through hole positioner + welding gun Angle adjustment mechanism, to ensure the welding gun multi-position, multi-angle conversion.

◆Control system adopts large screen touch screen man-machine interface, easy operation, integrated control of positioner parameters, swing parameters, welding machine current, wire feed parameters, arc voltage parameters.

◆The storage capacity of welding process is 50 sets, and the corresponding welding process can be directly invoked according to the welding specifications and numbers.

◆Standard arc length tracking system (AVC) and welding gun yaw system (OSC).

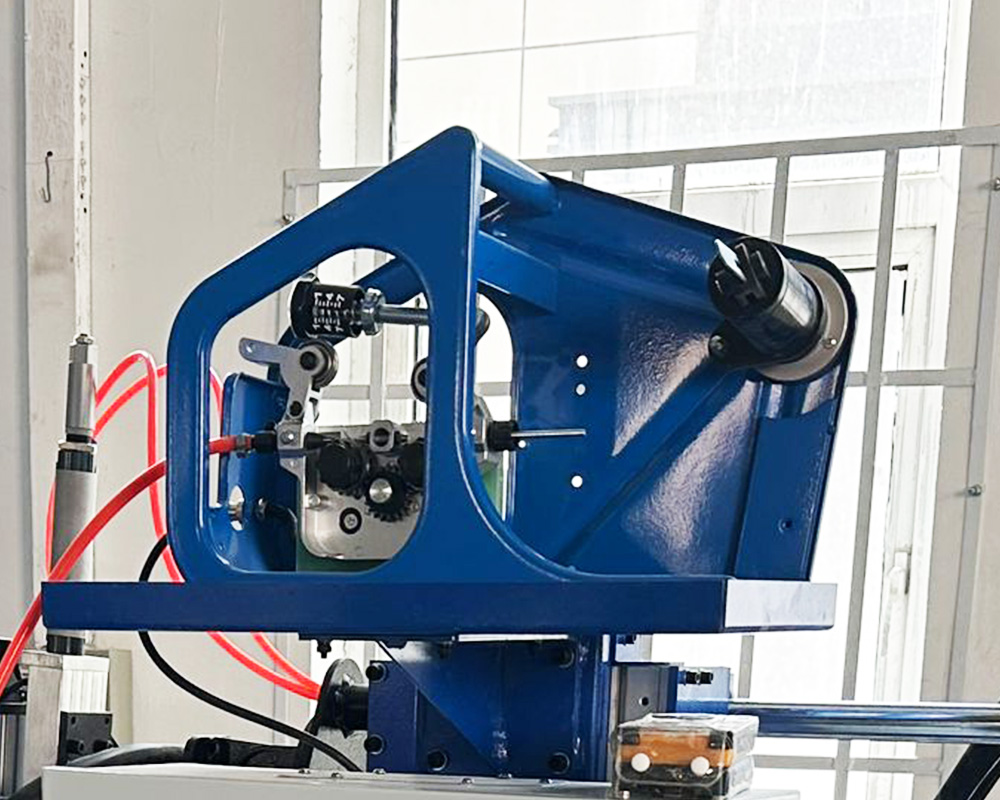

◆CNC automatic wire feeding machine, with automatic reverse wire drawing function and pulsating wire feeding function, high wire feeding precision, supporting wire feeding fixture.

◆Shanghai Zhengte 10L water tank, forced circulation water cooling system, to ensure the machine for a long time reliable operation.

◆Standard 5 meters WP27 water-cooled argon arc welding gun, mesh cover flow guide, uniform gas protection.

◆Wireless remote control one-button operation, automatic completion of the entire welding process; Real-time intervention of welding parameters can also be performed as required.

◆Support customization.

Model number	ZDH-1140
Turnover Angle	0-90°
Clamping diameter	20-550mm
Through-hole diameter	140/170mm
Argon arc welding machine	Aotai WSM-400
Cooling water tank	CT-10
Automatic welding gun	WP-27/water cooling
Suitable wire diameter	0.8/1.0/1.2/1.6
Three-dimensional regulation formation	600600600mm
Overall dimension	120010002000mm
