TIG autoatic welding

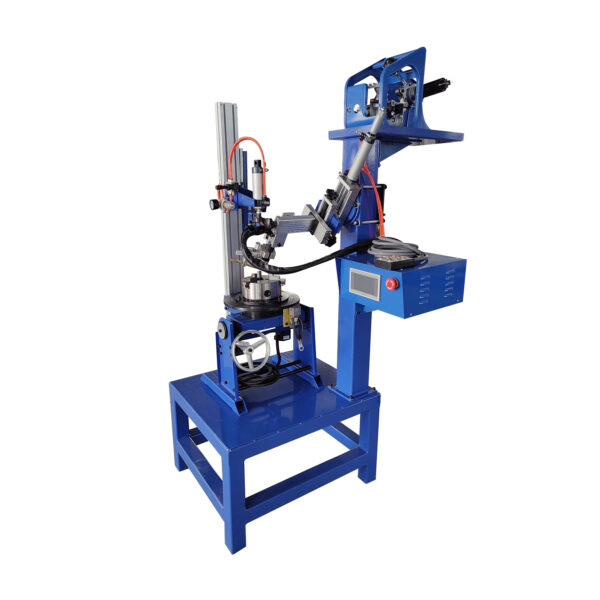

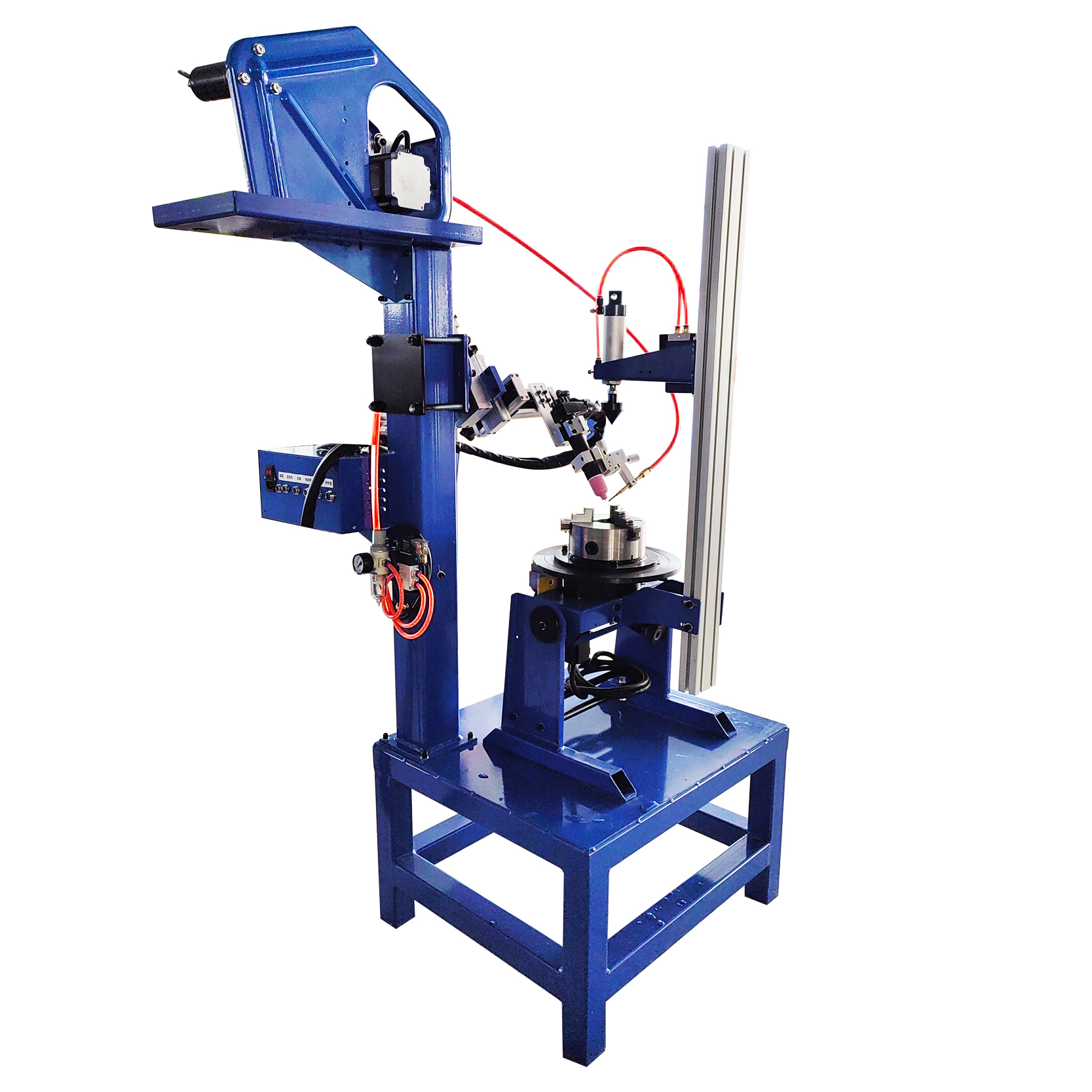

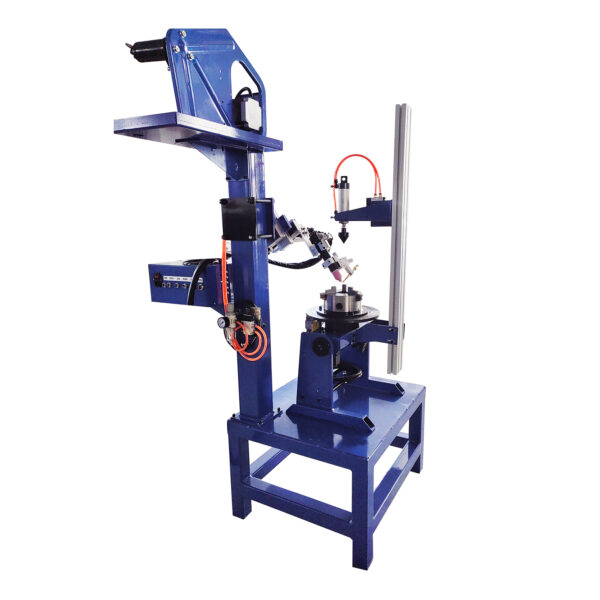

Integrated design automatic welding equipment ZDH-30 argon arc gas storage flange automatic welding
氩弧自动焊ZDH-30
TIG autoatic welding
◆ Suitable for gas shielded welding or argon arc self-fusion welding of pipe and pipe flange
◆ Suitable for welding of carbon steel and stainless steel.
◆ Integrated design, compact structure, mature and reliable; Three-jaw self-centering chuck rotation positioning accurate.
◆ Equipped with precision pneumatic lifting slide, installation of three-dimensional manual slide, can adjust the position of the welding gun from multiple angles.
◆ Standard 30kg CNC position changer, through hole 25mm, with XH200 chuck holding 20-210mm (or with machine 125 chuck holding range 10-120mm).
◆PLC control, 4.3 inch touch screen panel, with automatic rotation, welding torch start and stop, welding torch automatic lift, welding torch delay and other functions, can be segmented welding, full welding, spot welding, etc.
◆ The storage capacity of welding process is 10 sets, and the corresponding welding process can be directly invoked according to the specifications of welding parts and the number
◆ Optional OTAI WSM-400 argon arc welding machine or Otai NBC-350 double protection welding machine.
| Model number | ZDH-30 |
| Turnover Angle | 0-90° |
| Through-hole diameter | 45mm |
| Load (horizontal/vertical) | 30KG/15KG |
| Argon arc welding machine | Aotai WSM-400 |
| Cooling water tank | CT-10 |
| Automatic welding gun | WP-27/Water-cooled welding torch |
| Suitable wire diameter | 0.8/1.0/1.2/1.6 |
| Clamping diameter | Clamping range of positive claw 3-55mm Inner brace clamping range 50-160mm Anti-claw grip range 55-145mm |
| Three dimensional slider adjustment stroke | 100*100*100mm |
产品细节
Product details
Cast iron precision countertop
Made of fine iron, with a hole in the center
Strong bearing capacity, multi-specification selection
Can accommodate different types of workpiece welding
Argon arc welding wire feeder
Advance delay wire feed
Automatic filling pulse wire feed
High copper conductive carbon brush
Welding machine ground wire, high copper four wire
300A current continuous welding
Wear turbine handle
Table can be freely turned 0-90 °
Easy to operate and adjust quickly
Pneumatic tail top
Jacking job
Auxiliary welding
3D precision slider
High precision
Manual fine-tuning
Accurate positioning
产品解析
Product analysis
现场实拍
Live shooting
